Camshaft Adjuster

WARNING: This page is about a different variant/trim than selected.

The following components are visible after removing the engine cover on the upper timing chain cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

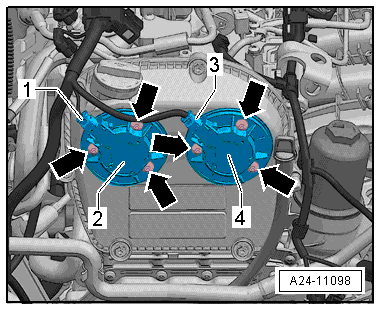

Engines with Two Camshaft Adjusters.

Courtesy of AUDI OF AMERICA, LLC

2 -

Exhaust Camshaft Adjustment Valve 1 -N318-

4 -

Camshaft Adjustment Valve 1 -N205- in the Intake

Engines with One Camshaft Adjuster

Courtesy of AUDI OF AMERICA, LLC

2 -

Camshaft Adjustment Valve 1 -N205- in the Intake
