Rear Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear belt anchor. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Guide out the seat belt webbing from the C-pillar trim panel.

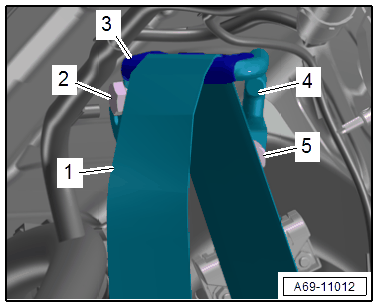

-- Unclip the seat belt guide -3- using the : 3409 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 5-.

-- Remove the seat belt guide -4- and seat belt webbing -1-.

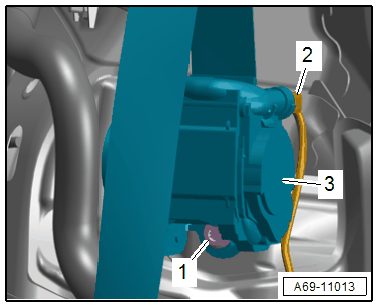

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide out the three-point seat belt -3- from the mount.

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.

-- Disconnect the connector -2- for the seat belt igniter. Release the connector lock using a small screwdriver.
