Rear Seat Belt Guide, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear belt anchor. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

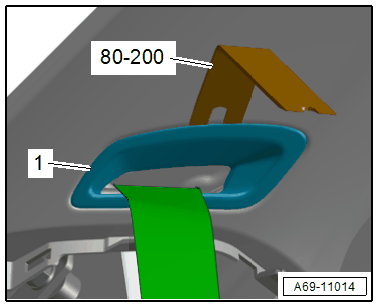

-- Disengage the seat belt guide retaining tabs using the : 80-200 and unclip the seat belt guide -1- from the C-pillar trim panel.
-- Guide out the seat belt webbing and remove the seat belt guide.
