Front Seat Belt Latch, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

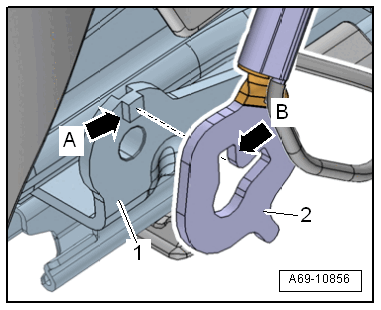

-- Position the seat belt latch -2- so that the cut-out -arrow B- lines up with the hole -arrow A- on the seat pan -1-.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
- Observe all measures when installing the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
