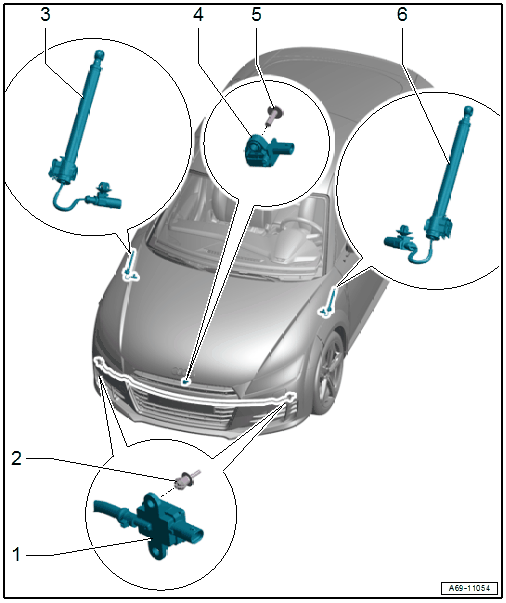

Overview - Pedestrian Protection
WARNING: This page is about a different variant/trim than selected.
- Pedestrian Protection Crash Sensor 2
- LHD in the direction of travel on the left side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
- LHD in the direction of travel on the right side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- RHD in the direction of travel on the right side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
- RHD in the direction of travel on the left side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- Unit with pressure hose
- Component location: in the molded foam part on the impact member
- Must be replaced when
- The molded foam part is visibly damaged.
- The impact member is visibly deformed.
- Bumper cover very damaged / visibly damaged
- The pressure hose is damaged.
- Place the pressure hose in the groove on the molded foam part.
- Installed location of the pressure hose: in the center of the molded foam part, the projection is the same on both the left and right.
- Do not kink or squeeze the pressure hose.
- Removing and Installing. Refer to Pressure Hose Sensor for Front Pedestrian Protection -G579-, REMOVING AND INSTALLING .
- Rivet
- Depending on the version
- Pedestrian Protection Trigger in Direction of Travel on the Right Side
- LHD: Pedestrian Protection Trigger 2 -G599-
- RHD: Pedestrian Protection Trigger 1 -G598-
- Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
- Pedestrian Protection Center Crash Sensor -G693-
- Installation location: on the bumper cover
- Removing and Installing. Refer to Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Pedestrian Protection Trigger in Direction of Travel on the Left Side
- LHD: Pedestrian Protection Trigger 1 -G598-
- RHD: Pedestrian Protection Trigger 2 -G599-
- Removing and Installing. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
