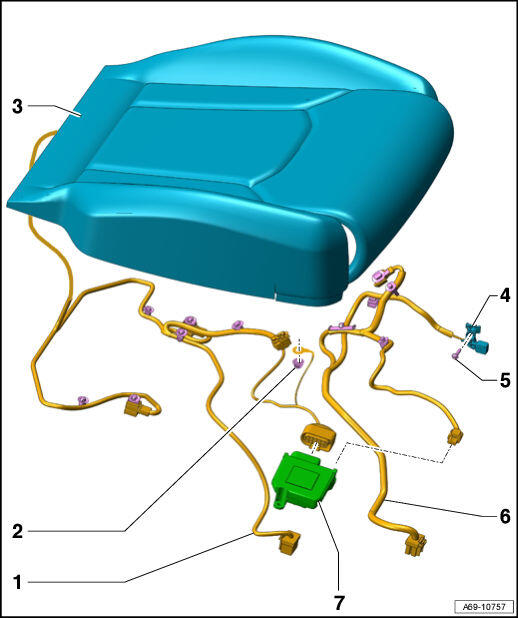

Component Location Overview - Passenger Occupant Detection System
WARNING: This page is about a different variant/trim than selected.
NOTE:
The seat heating element is used for the passenger occupant detection system.
- Wiring Harness
- For the seat heating element with passenger occupant detection system
- Clip into the seat frame
- Connector station in the vehicle floor under the seat.
- Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
- Nut
- 1.5 Nm
- Passenger Occupant Detection System
- The seat heating element is used for the passenger occupant detection system.
- Depending on the seat version, the passenger occupant detection system is either sewn into the cover with the seat heating element, or bonded onto the seat cushion
- Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
- Front Passenger Seat Position Sensor -G554-
- Driver seat: Driver Seat Position Sensor -G553-
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -item ) Bolt
- Wiring Harness
- For the seat position sensor/seat belt fastening detection/seat belt switch
- Clip into the seat frame
- Connector station in the vehicle floor under the seat.
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
- Passenger Occupant Detection System Control Module -J706-
- Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
