Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING: Removing
Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Vehicles without auxiliary cooler: remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Vehicles with an auxiliary cooler: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

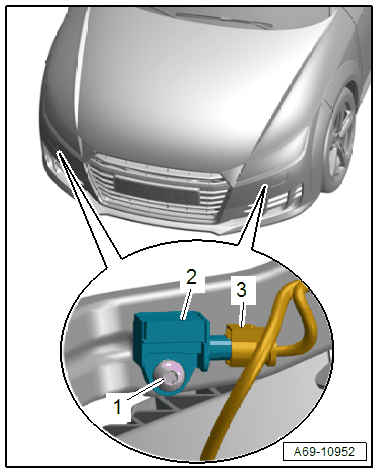

-- Remove the screw -1- and the front airbag crash sensor -2- from the lock carrier.
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
-- Disconnect the connector -3-.
-- To do this pull out the connector lock -2-, push down in direction of -arrow-, and disconnect the connector -1- on the crash sensor.
