Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".

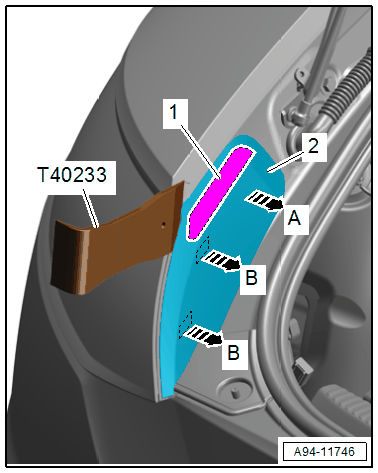

-- Carefully loosen the bonding -1- on the cover -2- from the side panel.
-- Release the front retainer in direction of -arrow A-.
-- Using the Removal Wedge: T40233 , release the retainers on the tail lamp in direction of -arrows B-.

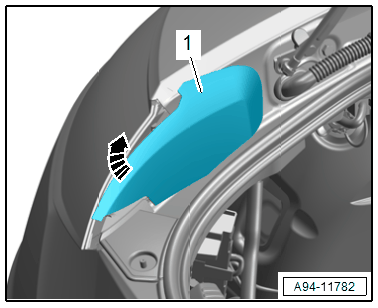

-- Remove the cover -1- from the tail lamp in direction of -arrow- as shown.
NOTE:
The cover must be removed very carefully so that the guide and the hooks do not get damaged.

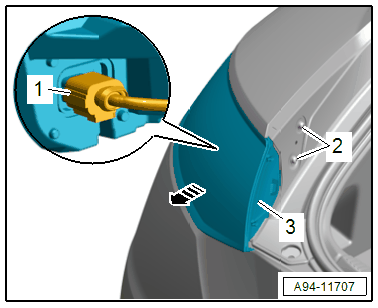

-- Remove the bolts -2-.
-- Remove the tail lamp -3- from the clip nuts toward the rear in direction of -arrow-.
-- Disconnect the connector -1- and free it up.
