Parking Aid Control Module -J446-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.

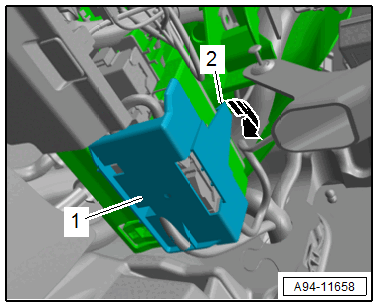

-- If equipped, release the retainer -2- in direction of -arrow- and remove the cover -1- downward.
-- North American market-specific: remove the driver side knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

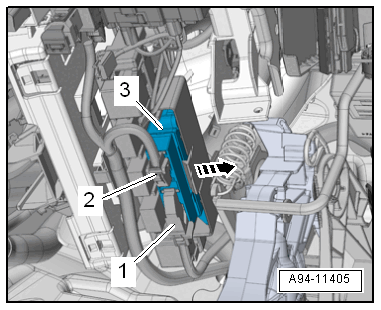

-- Disconnect the connectors -1 and 2- by pressing the tab, turning the retaining bracket and disconnecting the connector.
-- Release the retainer in direction of -arrow- and remove the control module -3- downward from the bracket.
