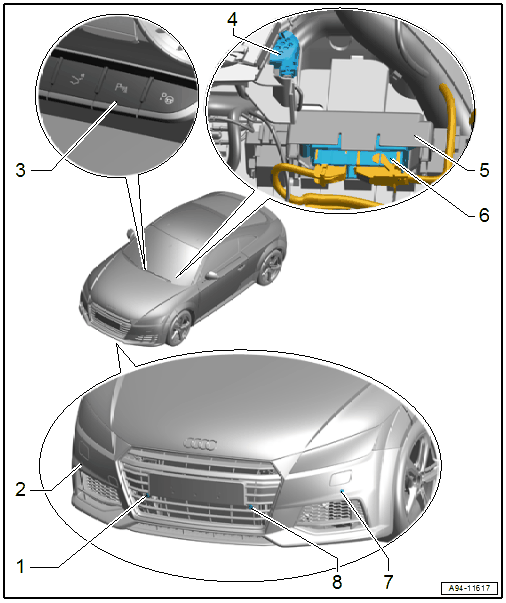

Overview - Front Parking Aid
WARNING: This page is about a different variant/trim than selected.
- Right Front Center Parking Aid Sensor -G253-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parking Aid Sensor -G252-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Parking Aid Button -E266-
- Only for 8-channel parking aid
- Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Only for 8-channel parking aid
- Removing and installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Bracket
- For the control module
- Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Front Center Parking Aid Sensor -G254-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
