Left And Right Hid Headlamp Bulb - L13- / - L14- With Headlamp Control Modules - J343- / : J344, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Do not operate the headlamp flasher.
-- Loosen the front wheel housing liner in the front area and push it aside. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

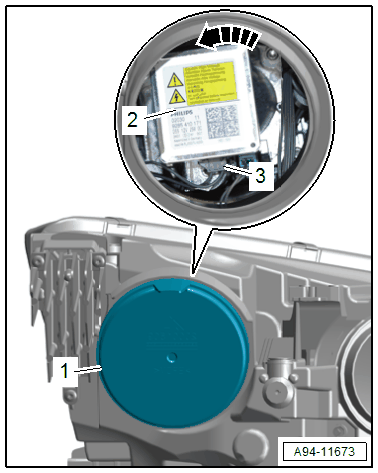

-- Remove the housing cover -1-.
-- Turn the HID headlamp bulb -2- counter-clockwise -arrow- and remove it from the housing.
-- Disconnect the connector -3-.
