Left And Right Daytime Running Lamp And Position Lamp Led Module - L176- / - L177-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Do not operate the headlamp flasher.
-- Loosen the front wheel housing liner in the front area and push it aside. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

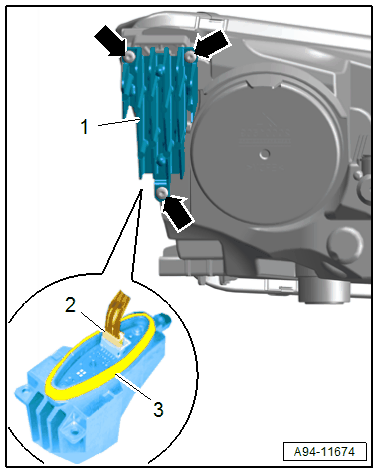

-- Remove the bolts -arrows-.
-- Remove the LED module -1-.
-- Disconnect the connector -2- and remove the LED module.
