Sealing Frame, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

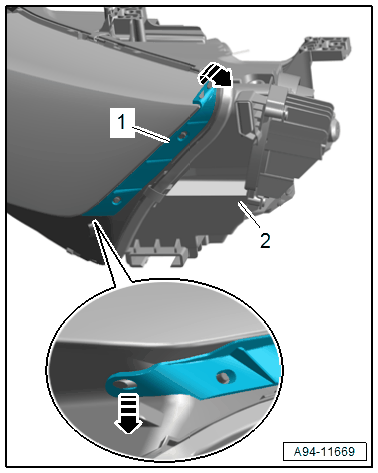

GWWA94-11669Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Detach the sealing frame -1- from the top and bottom of the headlamp -2- in direction of -arrows- and remove it.
