Headlamp Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover mount. Refer to OVERVIEW - BUMPER COVER .

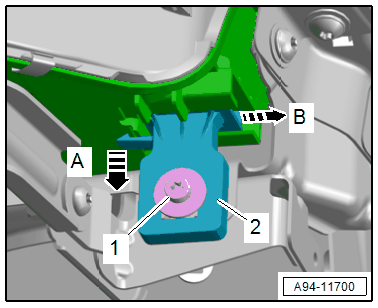

-- Remove the bolt -1-.
-- Release the retainer in direction of -arrow A- and remove the headlamp mount -2- in direction of -arrow B-.
