Right And Left Led Headlamp Power Output Module 1 -A27- / -A31-, Removing And Installing

Removing

-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Vehicles with Auxiliary Cooler

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the auxiliary cooler air duct by pushing the air duct outward and removing it.

Continuation for All Vehicles

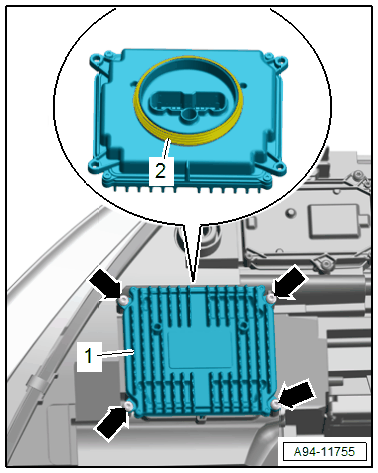

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the control module -1-.

Install in the reverse order of removal while noting the following:

-- Check the seal -2- for damage.

Tightening Specifications

• Refer to OVERVIEW - HEADLAMPS, LED HEADLAMPS
