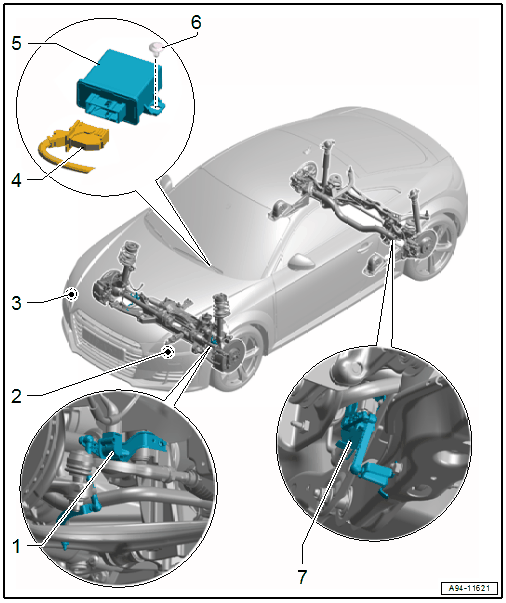

Overview - Automatic Headlamp Range Control
WARNING: This page is about a different variant/trim than selected.
- Left Front Level Control System Sensor -G78-
- Component location: On the front control arm
- Overview. Refer to OVERVIEW - FRONT LEVEL CONTROL SYSTEM SENSOR .
- Left Headlamp Beam Adjustment Motor -V48-
- Integrated in the headlamp cannot be replaced separately if faulty.
- Headlamp, replacing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Right Headlamp Beam Adjustment Motor -V49-
- Integrated in the headlamp cannot be replaced separately if faulty.
- Headlamp, replacing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Connector
- Control Module
- Removing and installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
Versions without Cornering Lamps
- Headlamp Range Control Module -J431-
Versions with Cornering Lamps
- Cornering Lamp and Headlamp Range Control Module -J745-
- Removing and installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
- Left Rear Level Control System Sensor -G76-
- Component location: on the rear control arm
- Overview. Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
