Headlamp Range Control Module, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

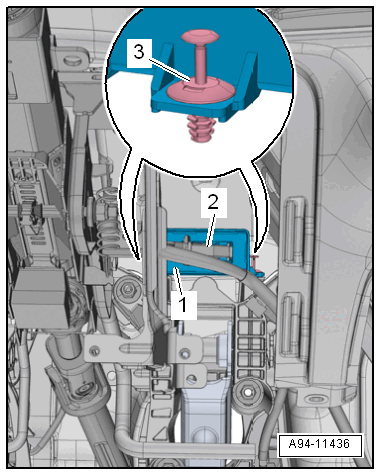

-- Disconnect the connector -2- by pressing the tab, turning the retaining bracket and removing the connector.

GWWA94-11436Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding clip -3- and remove the headlamp range control module -1- to the rear.
