Driver And Front Passenger Access/Start System Antenna -R134- / -R135-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Detach the center underbody trim panel at the side sill trim panel and push it slightly downward. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

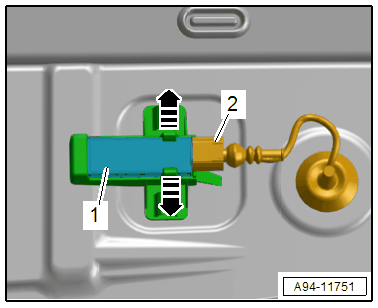

-- Disconnect the connector -2-.
-- Release the retainers in direction of -arrows- and remove the antenna -1-.
