Access/Start System Antenna in Rear Bumper -R136-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

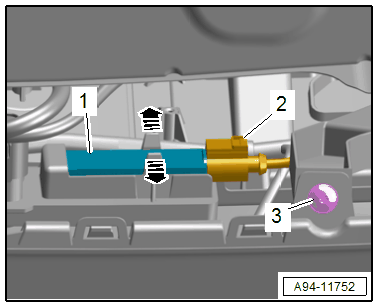

-- Remove the bolt -3-.

-- Reach behind the bumper cover and release the retainers in direction of -arrows-.

GWWA94-11752Courtesy of AUDI OF AMERICA, LLC

-- Remove the antenna -1- and disconnect the connector -2-.
