Impact Member, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Equipment version: free up the wiring harness -2-.

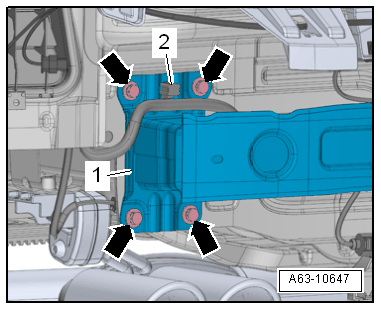

-- Remove the bolts -arrows-.
-- Slightly lift up the impact member -1- and remove it.
