Bumper Cover, Removing And Installing: Removing

-- Loosen the rear wheel housing liner from the bumper cover and move it to the side. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

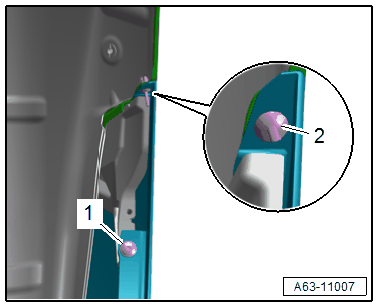

-- Remove the bolt -1- and the expanding rivet -2-.

Courtesy of AUDI OF AMERICA, LLC

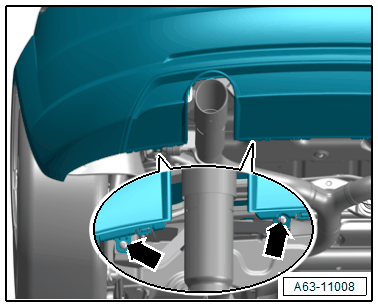

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamp. Refer to TAIL LAMP, REMOVING AND INSTALLING .

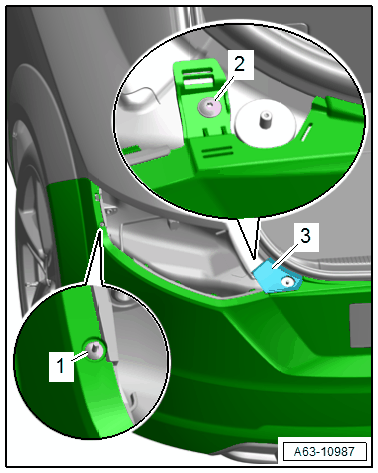

-- Pry the cover -3- off of the bumper cover.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the expanding rivet -1-.

-- Remove the rear lid end trim panel. Refer to Luggage Compartment Trim Panels .

Courtesy of AUDI OF AMERICA, LLC

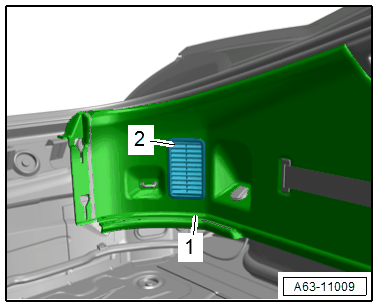

-- Remove the vent grille -2- from the luggage compartment side trim panel -1-.

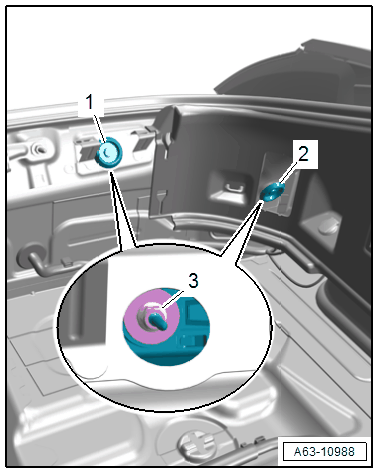

-- Remove the covers -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3- using the :T40078  .

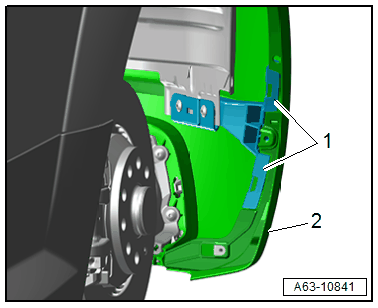

-- Release the catches -1- and pull the bumper side section -2- to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the side piece from the side panel outward and slightly pull out the bumper cover.

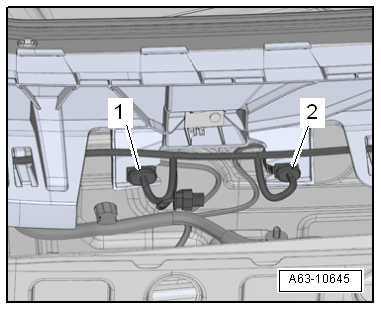

-- Disconnect the connectors -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disconnect the connector from the Access/Start System Antenna in Rear Bumper -R136-.

-- Lay the bumper cover on a soft surface.
