Center Bumper Cover Reinforcement, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover side reinforcement. Refer to SIDE BUMPER COVER REINFORCEMENT, REMOVING AND INSTALLING .

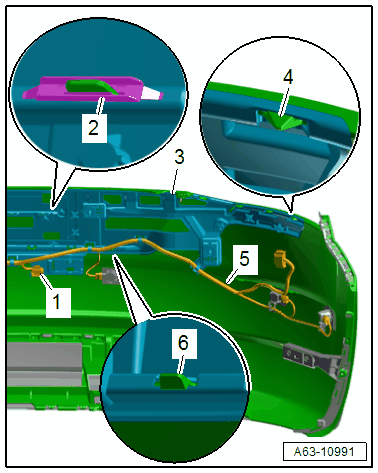

-- Free up the wiring harness -5- and the connector -1-.
-- Carefully remove the clips -2- from the strap with a screwdriver.
-- Release the catches -4 and 6- and remove the center reinforcement -3-.
