Rear Side Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

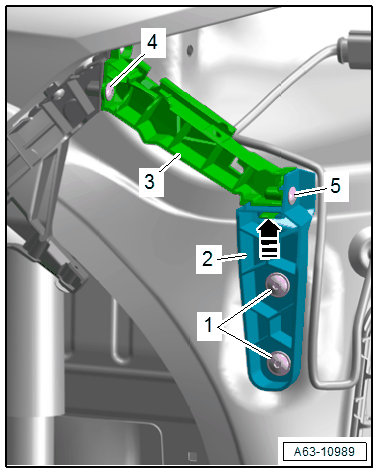

-- Remove the bolts -1 and 4-.
-- Remove the bolt -5-, release the catch in direction of -arrow- and remove the lower side mount -2- from the rear side mount -3-.
-- Remove the bumper cover rear side mount.
