Front Side Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

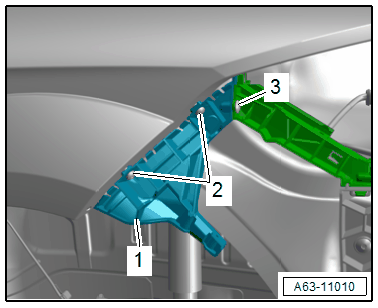

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bolts -2 and 3-.
-- Remove the bumper cover side mount -1-.
