Bumper Cover Mount, Removing And Installing, Bottom: Removing
WARNING: This page is about a different variant/trim than selected.

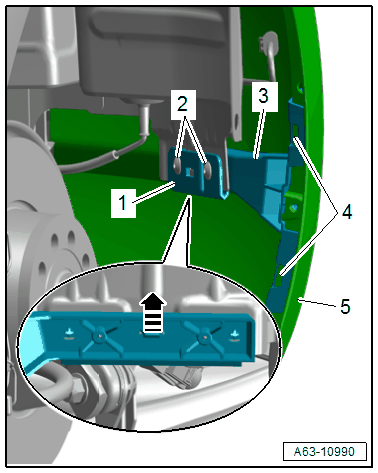

-- Loosen the rear wheel housing liner from the bumper cover and move it to the side. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the bolts -2-.
-- Release the catch in direction of -arrow- and fold the front side -1- of the mount downward.
-- Release the catches -4- and pull the bumper side section -5- to the side.
-- Remove the lower mount -3-.
