Bumper Cover Lower Section, Removing And Installing, TTRS: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.
-- Release the catches -1 and 3- and remove the outer reinforcement -2-.

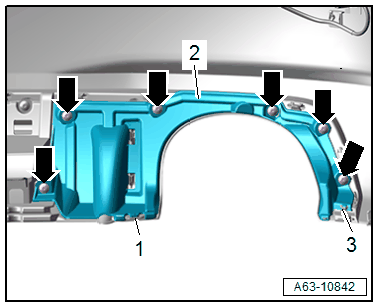

-- Remove the bolts -1-.
-- Release the retainers -arrows- and remove the lower section -2- from the bumper cover.
