Side Air Intake Cap, Removing And Installing, TTRS Through My 2018: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side reinforcement brace. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING, TTRS, S LINE FROM MY 2019 .

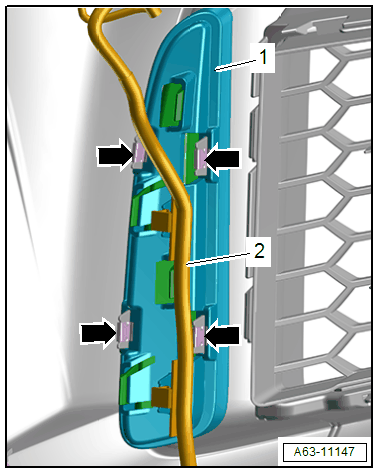

-- Free up the wiring harness -2-.
-- Pry out the clip -arrows-.
-- Remove the side air intake cap -1- from the bumper cover.

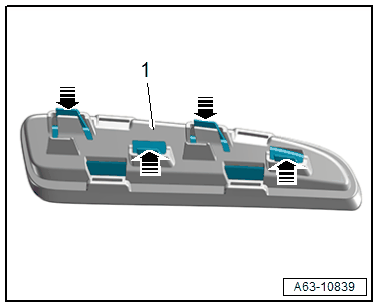

-- Open the retainers in direction of -arrows- and remove the bracket -1-.
