Side Reinforcement Brace, Removing And Installing, TTRS, S Line From My 2019: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Disconnect the connector.
-- Release the retainer -1- and disengage the pedestrian protection crash sensor -2- on the bumper cover.
-- Remove the upper molded foam part with the pressure hose inserted. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .

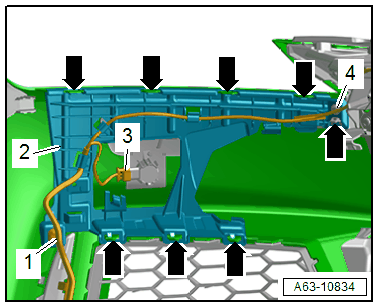

-- Disconnect the connector -3- and free up the wiring harness -1-.
-- Remove the bolt -4-.
-- Release the retainers -arrows-.
-- Remove the reinforcement brace -2- to the rear.
