Lower Reinforcement Brace, Removing And Installing, From My 2019: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Free up the wiring harness -3-.

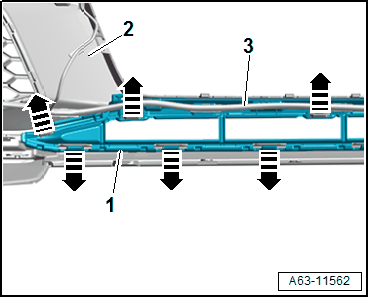

-- Release the catches in direction of -arrows- and remove the reinforcement brace -1- rearward from the bumper cover -2-.
