Version 3:
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

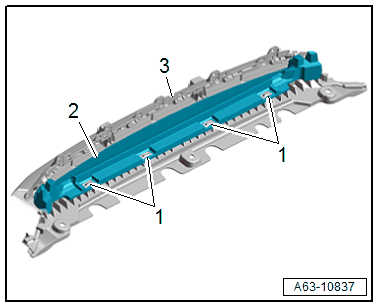

-- Pry out the clamps -1-.
-- Remove the molded foam part -2- from the end panel -3-.
Installing
Install in reverse order of removal and note the following:
Version 1:

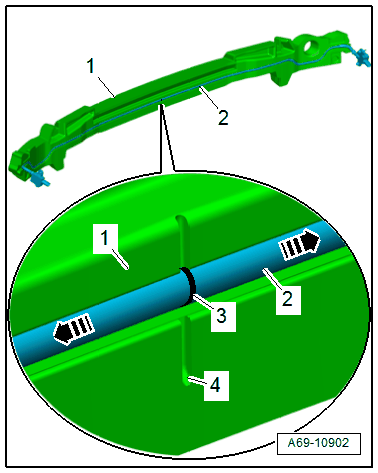

-- Position the pressure hose -2- at the center of the color mark -3- in the recess on the specified marking -4- in the molded foam part -1-.
-- Position the pressure hose evenly in both directions -arrows- in the recess in the molded foam part.
