Version 2:

WARNING: This page is about a different variant/trim than selected.

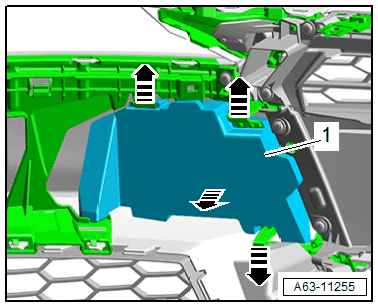

GWWA63-11255Courtesy of AUDI OF AMERICA, LLC

-- Open the tab in direction of -arrows- and disengage the molded foam part -1- from the bumper cover and remove.

-- Remove the bolts -2-.

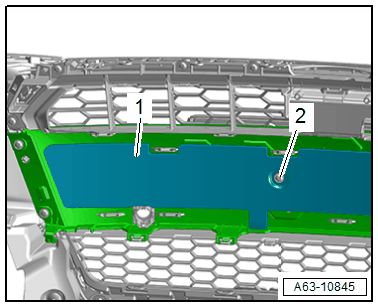

GWWA63-10845Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part -1-.
