Lock Carrier Cover, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .

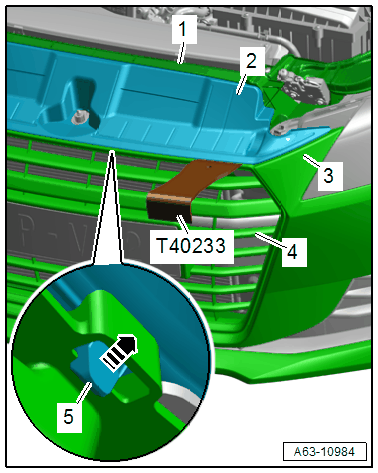

-- Version 1: release the lock carrier cover catches -5- on the radiator grille -4- and the bumper cover -3- with the :T40233 .
-- Version 2: remove the expanding rivet using the :T40172B .
-- Remove the lock carrier cover -2- from the groove in the lock carrier -1-.
-- Remove the lock carrier cover.
-- Insert the operating lever hook again.
