Impact Member, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Disconnect the radiator air duct. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
-- Remove the connecting brace and move it to the side with the connectors still connected. Refer to CONNECTING BRACE, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.

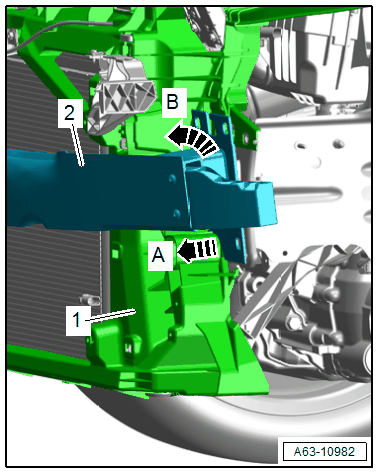

-- Pull the lock carrier -1- slightly forward in direction of -arrow A-, tip the top of the impact member -2- forward in direction of -arrow B- and remove it from the lock carrier.
