Impact Member, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

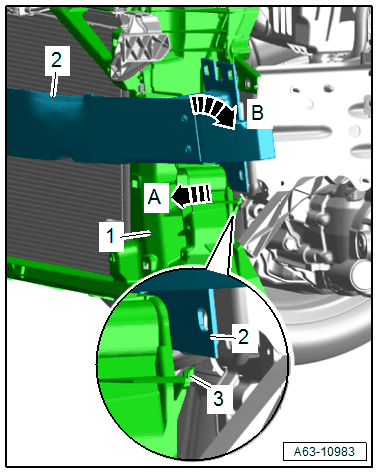

-- Pull the lock carrier -1- forward in direction of -arrow A-, insert the impact member -2- in direction of -arrow B- and set it in its installation position.
- The impact member must be guided behind the guide -3- on the lock carrier while doing so.
