Front Spoiler Lower Section, Removing And Installing, TTRS From My 2019: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front spoiler upper section. Refer to FRONT SPOILER UPPER SECTION, REMOVING AND INSTALLING, TTRS FROM MY 2019 .

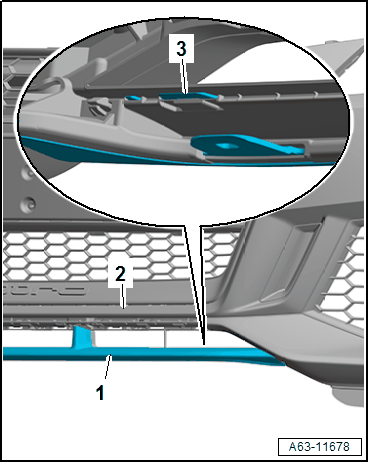

-- Release the retainers -3-.

GWWA63-11678Courtesy of AUDI OF AMERICA, LLC

-- Remove the front spoiler lower section -1- from the bumper cover -2-.
