Front Spoiler Lower Section, Removing And Installing, S Line From My 2019: Removing
WARNING: This page is about a different variant/trim than selected.
-- Vehicles with auxiliary radiator: remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .
-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, S LINE FROM MY 2019 .
-- Free up the wiring harness and washer fluid hose.

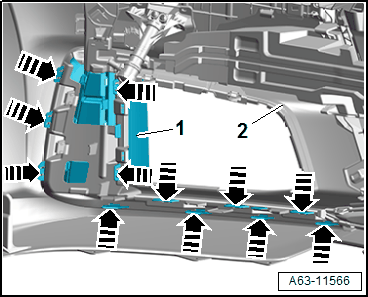

-- Release the retainers in direction of -arrows-.
-- Remove the front spoiler lower section -1- from the bumper cover -2-.
