Bumper Cover, Removing And Installing: Removing

-- Left: remove the front wheel spoiler. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Push the front wheels and loosen the wheel housing liner in the area of the front bumper cover and move it to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

Vehicles with Headlamp Washer System:

Courtesy of AUDI OF AMERICA, LLC

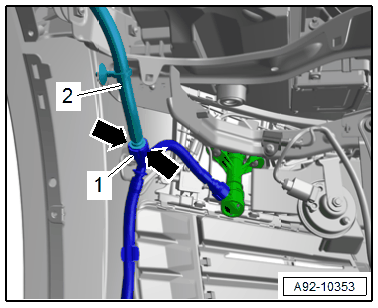

-- Place a drip tray under the separating point for the washer fluid hose.

-- Push the release buttons -arrows- and disconnect the washer fluid hose -2- for the headlamp washer system.

-- Close the hose coupling -1- with clean plugs from the :VAS6122  .

Continuation:

Courtesy of AUDI OF AMERICA, LLC

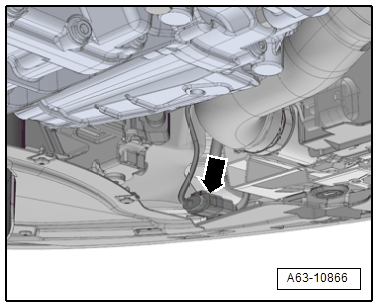

-- Disconnect the central connector -arrow-.

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

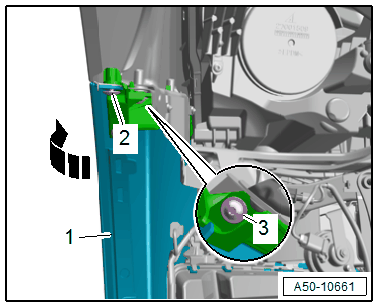

-- Disengage the side bolster -1- from the front side panel -arrow-. To make it easier to disengage the bolt -3- must be loosened.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

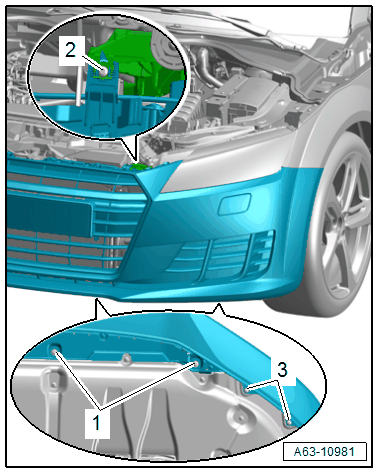

-- Remove the bolts -1-, -2- and -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the end panel.

-- Remove the bumper cover with the help of a second technician.
