Bumper Cover, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

-- After installing check if the support is seated correctly on the impact member.

If the support is not correct.

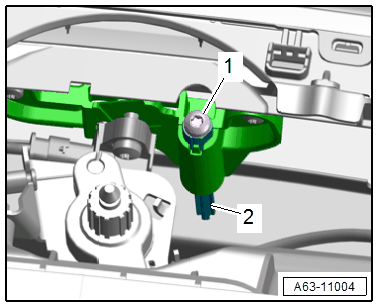

-- Remove the bolt -1- and place the support -2- on the impact member and tighten the bolt.

GWWA63-11004Courtesy of AUDI OF AMERICA, LLC
