Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Loosen the front wheel housing liner on the bumper cover and move it to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

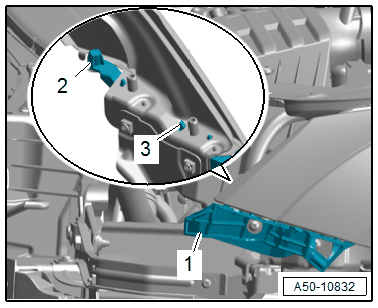

-- Remove the bolt -2-.
-- Disengage the side bolster -1- from the front side panel -arrow-.
-- Remove the bolts -3-.
-- Release the catch -3- and pivot the mount -1- downward while doing so the attachment point -2- for the rear bumper is pivoted out of the fender.
