Bumper Cover End Plate, Removing And Installing, Roadster: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

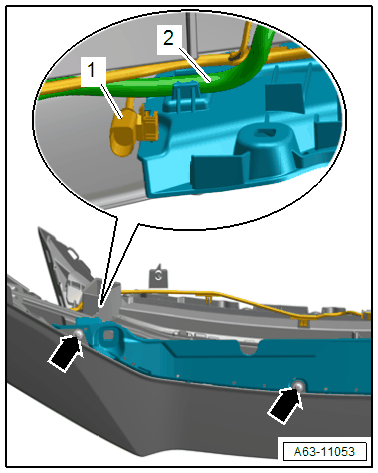

-- Free up the central connector -1- from the retainer.

Courtesy of AUDI OF AMERICA, LLC

-- If installed, free up the washer fluid hose -2- for cleaning the headlamps.

-- Remove the bolts -arrows-.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

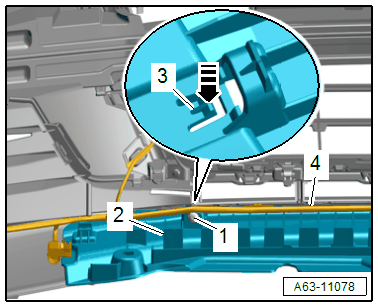

-- Release the retainer -3- in direction of -arrow- and remove the front bumper cover end plate -2- toward the rear (in the direction of travel).

-- Free up the wiring harness -4-.
