Bumper Cover End Plate, Removing And Installing, Coupe: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

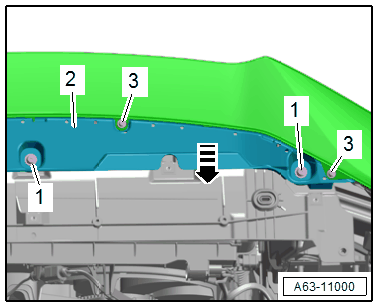

-- Free up the central connector -arrow- from the retainer.
-- If installed, free up the washer fluid hose for cleaning the headlamps.
-- Remove the bolts -1 and 3-.
-- Pull the front bumper cover end panel -2- according to the direction of travel toward the rear -arrow-.
