Air Intake Grille, Removing And Installing, Through My 2018: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the lower reinforcement brace. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, THROUGH MY 2016 .
-- Remove the side reinforcement brace. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING .

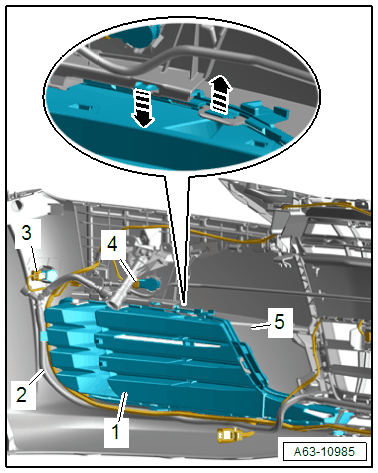

-- If equipped, disconnect the connector for the parking aid sensor -4- and the sensor for the parking steering sensor -3-.
-- Free up the wiring harness.
-- Free up the washer fluid hose -2-.
-- Release the catches in direction of -arrows- and remove the air intake grille -1- toward the rear off of the bumper cover -5-.
