Air Intake Grille, Removing And Installing, S Line From My 2019: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

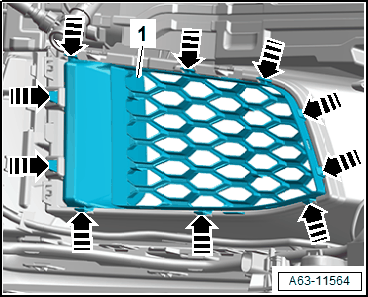

-- Release the catches in direction of -arrows- and remove the air intake grille -1- toward the front from the bumper cover.

GWWA63-11564Courtesy of AUDI OF AMERICA, LLC
