Front Diagonal Braces, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
- The following components must be replaced after removal. Refer to Figure.
Removing
-- Remove the left and right underbody trim panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS .
CAUTION:
Risk of damaging the thread by using an impact wrench.
- When installing, position the bolts by hand and screw in the first threads.
- Do not loosen or tighten the bolts with an impact wrench.

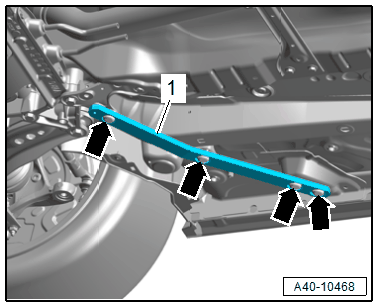

-- Remove the left and right bolts -arrows- and then remove the diagonal brace -1-.
Tightening Specifications
- Refer to Figure
