Fixed Spoiler, Removing And Installing: Removing

-- Coupe: remove the drip rail. Refer to DRIP RAIL, REMOVING AND INSTALLING .

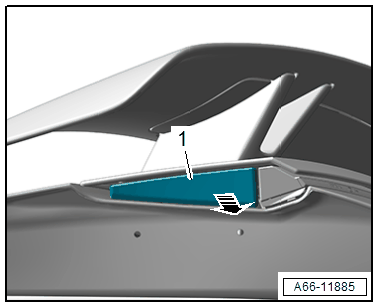

-- Lift the cover for the spoiler -1- using the : T10383/1  in the direction of the -arrow-.

Courtesy of AUDI OF AMERICA, LLC

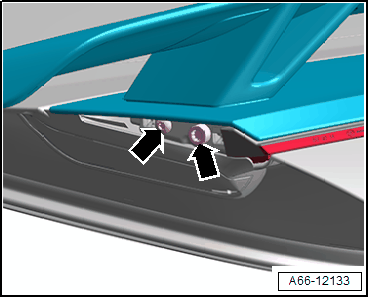

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

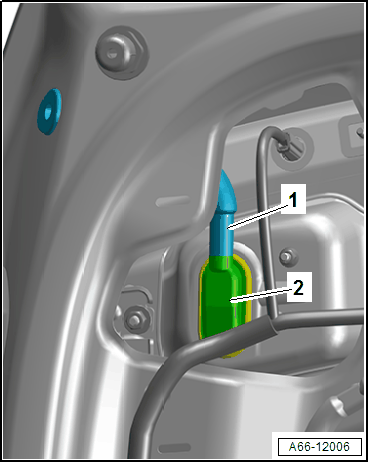

-- Remove the water drain hose -1- from the mount -2- for the water drain.

Courtesy of AUDI OF AMERICA, LLC

Roadster:

Courtesy of AUDI OF AMERICA, LLC

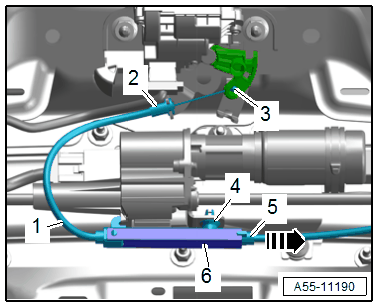

-- Pull the release cable -5- to the right in direction of -arrow- and open the coupling cover -6- at the same time the release cable nipple is disengaged.

-- Free up the coupling catch on the mount -4- and disengage to the left at the same time.

-- Move the release cable -1- to the side.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

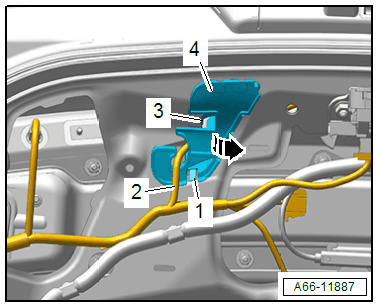

-- Release the catches -1 and 3-.

-- Guide the left and right anti-theft protection -4- out of the opening -arrow- at the same time free up the wiring harness -2-.

-- Remove the nuts -1 to 13-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the spoiler from the rear lid and lay it down on a soft surface.
