Electric Spoiler, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
- Adjustment dimensions. Refer to SPOILER, ADJUSTING .

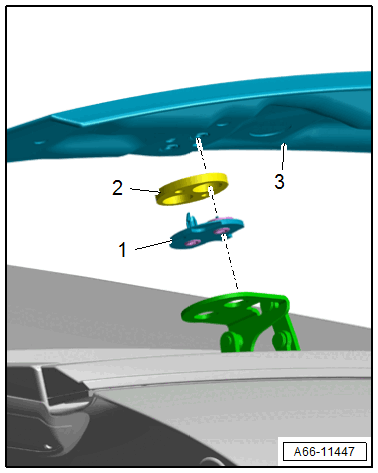

-- Clean the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.
-- Remove the tape peel-off backing and apply the foam seal -2- on the adjusting mechanism.
-- Clip in the left and right adjusting mechanisms -1- in the spoiler -3-.
