Spoiler, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

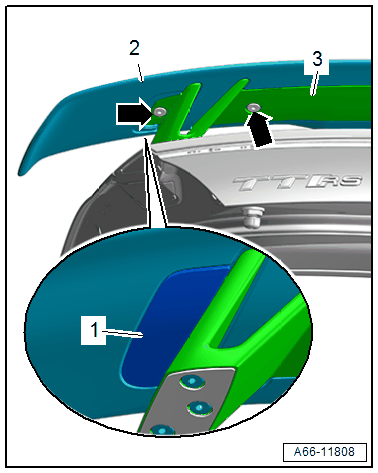

-- Carefully warm the cover -1- using the : VAG1416  and pry out of the spoiler -2- using the : T10383/1  and at the same time carefully loosen the bonding.

GWWA66-11808Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Carefully warm the spoiler using the : VAG1416  and pry out from the mount -3- using the : T10383/1  and at the same time carefully loosen the bonding.
