Spoiler, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
- The vehicle and the spoiler must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove the adhesive residue on the spoiler.
-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.

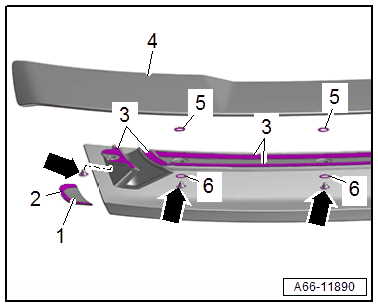

-- Remove the tape peel-off backing and bond the seals -5 and 6- on the mount.
-- Remove the tape peel-off backing -3- place the spoiler -4- on the mount and secure using the bolts -arrows-.
-- Remove the protective film -2- for the adhesive surface and bond the cover -1- on the spoiler.
