Spoiler Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the spoiler. Refer to FIXED SPOILER, REMOVING AND INSTALLING .

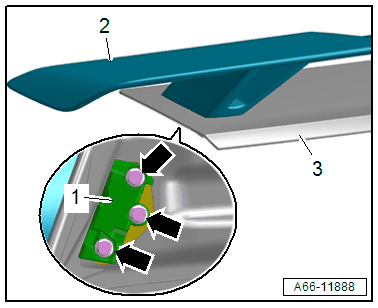

-- Remove the bolts -arrows-.

GWWA66-11888Courtesy of AUDI OF AMERICA, LLC

-- Remove the adapter plate -1-.

-- Remove the trim -3- from the spoiler -2-.
