Spoiler Trim, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
-- Clean the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.

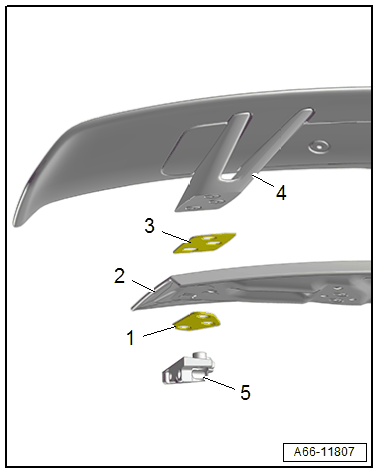

-- Remove the tape peel-off backing, apply the seals -1 and 3- on the trim -2- and the upper mount -4-.
-- Position the adapter plate -5- and secure using the bolts.
